Lubricating MAXEP 017/276 phosphate ester amine salt “has better lubrication, anti-emulsification and low foaming tendency than traditional phosphate ester anti-wear agents”

1.Product Introduction

1. MAXEP series phosphate amine salt has excellent anti-wear and extreme pressure properties;
2. Ash-free products;
3. Good anti-emulsification ability;
4. It has good compatibility with all kinds of base oil;
5. Recommended for stamping stretching, cutting, rolling and other pure oil products, can also be used in metal processing fluid;
6. Recommended addition: 0.5-3.0%

Basic product data

• Performance Test

Below we will show the performance comparison of phosphoric acid ester amine salt and traditional phosphoric acid ester, Here we use Shanghai Yucheng’s N-5 phosphate additives for comparison

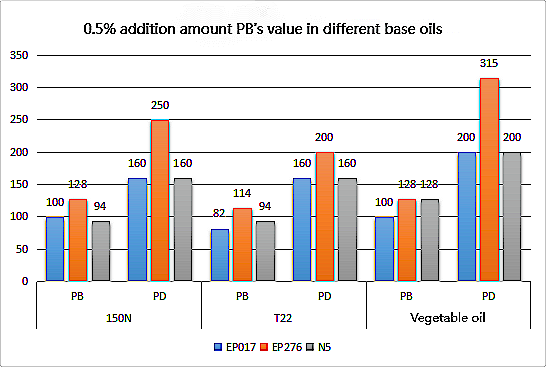

1.PB performance comparison

Extreme pressure properties in different base oils

Test method: GB/T3142

Test conditions: 0.5% additive+99.5 0N/T22/Vegetable oil

Summary: MAXEP276 showed excellent extreme pressure performance in all kinds of base oils. MAXEP017 showed excellent extreme performance in 150N, and the lubrication performance showed a downward trend in T22 and vegetable oil.

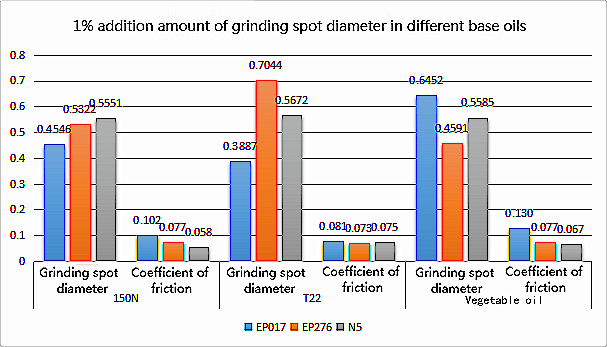

2. Long grinding performance comparison

Test scheme: 1% additive+99 0N/T22/Vegetable oil

Test method：Normal temperature environment, grinding for 60 minutes at 1200rpm/min under a pressure load of 40kgf

150N in the wear spot picture

Project	EP017	EP276	N5
Grinding spot diameter	0.4546	0.5322	0.5551
Long grinding picture

Picture of wear spots in T22

Project	EP017	EP276	N5
Grinding spot diameter	0.3887	0.7044	0.5672
Long grinding picture

Picture of grinding spots in vegetable oil

Project	EP017	EP276	N5
Grinding spot diameter	0.6452	0.4591	0.5585
Long grinding picture

Summary:

MAXEP017 showed lower wear tendency in 150N and T22 base oil;

MAXEP276 showed lower wear tendency in 150N and vegetable oil;

N-5 showed the stability of various types of base oil compatibility.

3. Performance of compounding with sulfur agent in pure oil

Test conditions: 1% additive +1.5% 40% sulfur content sulfurized olefin in 150N

	Blank sample	EP017	EP276	N5
PB	88	121	135	114
Wear spot diameter	0.6762	0.4686	0.4297	0.6043
Coefficient of friction	0.081	0.079	0.059	0.071

4. Performance of mixed with sulfur agent and chlorinated paraffin in pure oil

Test conditions: 1% additive +1.5 40% sulfur content sulfurized olefin + 6% chlorinated paraffin in 150N

	Blank sample	EP017	EP276	N5
PB	94	121	181	128
Wear spot diameter	0.5368	0.4496	0.4418	0.8377
Coefficient of friction	0.081	0.074	0.057	0.081

Summary: MAXEP phosphate amine salt has better additive synergy in the formulation.

5.Anti-emulsification test

Test method: 1% additive is dissolved in 150N, 40ml of test liquid is added into a measuring barrel, 40ml of deionized water is added, and the anti-emulsification condition is recorded by stirring at 1200rpm for 5min at 54 ℃.

Project	EP017	EP276	N5
Oil-water-emulsion layer (ml)	40/40/0	40/40/0	0/0/80
Separation time	9min	1min	30min without separation

Summary: MAXEP017/276 has excellent oil-water separation performance in pure oil.

6. Lubricating oil foam test

Test method: GB/T 12579

Test concentration: 1% additive dissolved in T22

Summary: MAXEP017/276 exhibits a lower tendency to bubble.

Product Summary:

Lubricating MAXEP 017/276 phosphate ester amine salt has better lubrication, anti-emulsification and low foaming tendency than traditional phosphate ester anti-wear agents.But more sensitive to base oil and additives,Need a reasonable use of formulators.
